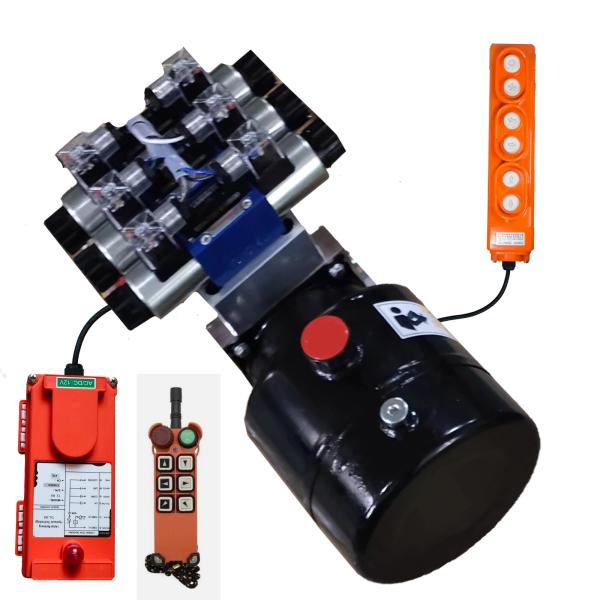

Lightweight DC12V-DC72V Compact Hydraulic System Power Pack Energy Efficient

• 【Parameter】The displacement of the gear pump is 1.6ml/r. The pressure is 2200PSI and can be adjusted. The fuel tank is 8 Quart.
• 【Design】It adopts a lightweight design and is more energy-efficient.It is fixed in six positions for greater stability.
• 【Function】1.Wireless remote control. Control the distance by 30 meters. 2.Handle switch control.
• 【Quality】 Manufacturer, high-end motor.

Introduction to Hydraulic Power Unit

The hydraulic power unit is an organic combination of gear pump, motor, integrated valve block, oil tank and other components.

Its working principle is to use the incompressibility of liquids and the pressure conductivity of liquids to achieve the movement of mechanical equipment. After forming high-pressure liquid through a gear pump. Liquid flows into the hydraulic control valve. The hydraulic control valve is responsible for controlling the hydraulic system to achieve power control of mechanical equipment.

The hydraulic power unit has a wide range of applications in modern mechanical equipment and is known as the "heart" of modern machinery.

Manufacturer's production

We are a manufacturer of power units. We can directly control product quality. We can provide sufficient production, multiple specifications, support customization.

Hydraulic power unit / hydraulic pump technical parameters

• Voltage: DC12V, 24V, 48V, 60V, 72V, AC110V, 220V
• Power: 0.75-4KW
• Flow rate: 0.26-5.5GPM, Port size: SAE # 6
• Relief valve pressure: 2200PSI, adjustable.
• Fuel tank capacity: 0.75-25Quart
• Actions: single acting and double acting
• Control: manual control and wireless remote control
• Installation methods: vertical installation and horizontal installation

Hydraulic System Power Pack Energy Efficient

DC72V Hydraulic System Power Pack

DC12V compact hydraulic power unit

Lightweight DC12V-DC72V Compact Hydraulic System Power Pack Energy Efficient Images
