DC12V Double Acting Hydraulic Pump Unit Wireless Control With 8 Quart Metal Tank

  • 1
  • 2
  • 3

MOQ : 1

Price : Contact us

Supply Ability : 200pcs per month

Delivery Time : 5-15 work days

Packaging Details : carton

Place of Origin : China

Brand Name : RenHeng

Payment Terms : L/C,T/T

Operation mode : Double acting

System pressure : 2200psi

Displacement : 2.6ml/r

Remote control : 30m

Tank Material : Metal

Mount Position : Vertical mount

Connector Size : SAE #6

Dimensions : Customizable

Contact Now

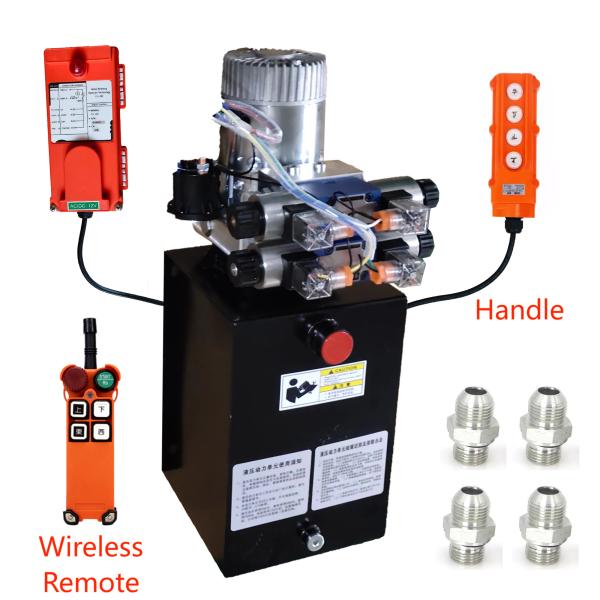

  • Hydraulic Power Unit Double Acting DC12V Wireless Romote Control with 8 Quart Metal Tank

1. Production details: This hydraulic power unit is a double-acting operation one, which has a 8 quart metal tank and designed with a 12VDC motor that can provide strong power for hydraulic systems.

2. Easy to use: This hydraulic power unit has been fully assembled in advance. and wiring is simple but reliable, and with wireless remote control handle which can support up to 30 meters of remote control and four additional SAE#6 connectors included in the package.

3. Unique design: This hydraulic power unit adopts lightweight design, which is more environmentally friendly and energy-efficiently. It is using a six-point fixing, which has a higher stability, greatly improve the service life.

4. Rapid response: This hydraulic power unit has a powerful motor and pump, which is quick to start and quick to output oil, without latency time.

5. Wide application: This power unit is widely used in stackers, small, and medium-sized lifting platforms.

  • Specifications:

​

　 Description Specification Optional
1 Application Scenario Lifter —
2 Operating Handle Yes —
Wireless Romote Control Yes Optional
3 Voltage/DC or AC 12VDC

DC:24V, 48V, 60V, 72V;
AC:110V, 220V
Moter Power 2kW 0.75kW ~ 4.0kW, Customizable
4 Blocks 2 1, 4, 5, 6;
Operation Mode Double-Acting Single-Acting
5 Nominal Flow 0.26 ~ 5.5GPM
System Pressure 2200psi Adjustable
6 Tank Capacity 8 Quart 0.75 ~ 25Quart, Customizable
Tank Material Metal Plastic
Tank Shape Rectangular Round
Mount Position Horizontal mount Vertical mount
7 Connector Size SAE #6 —
Connector Spare Parts 4 —

  • More details:

DC12V Double Acting Hydraulic Pump Unit Wireless Control With 8 Quart Metal Tank

DC12V Double Acting Hydraulic Pump Unit Wireless Control With 8 Quart Metal Tank
